Use

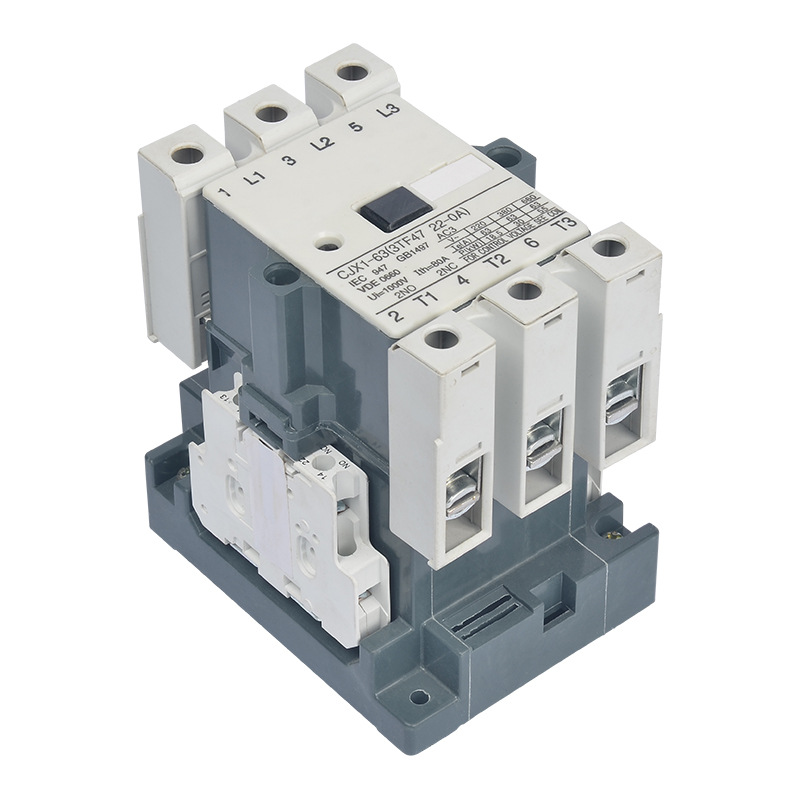

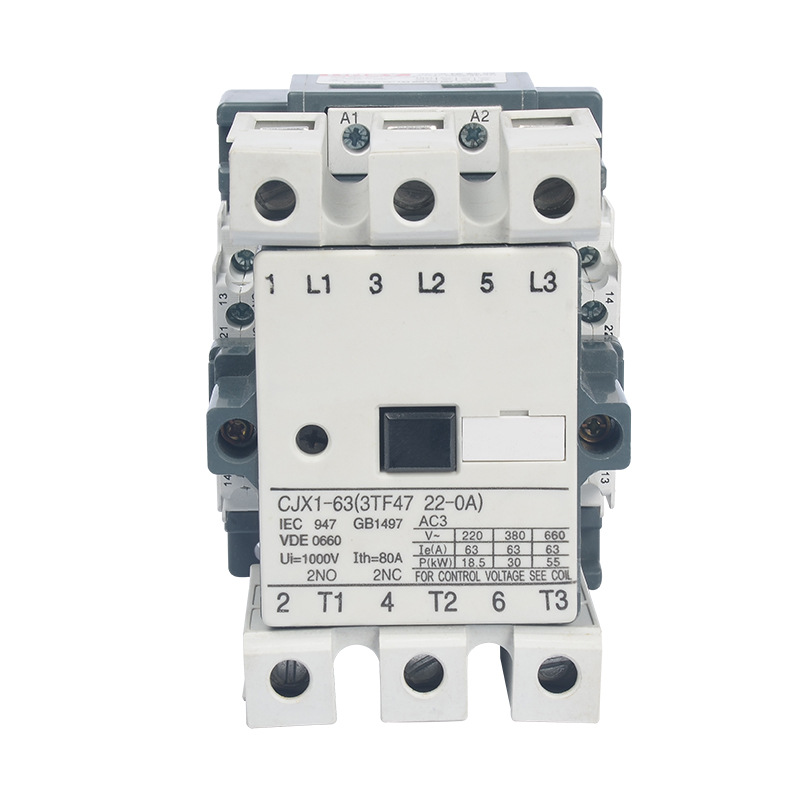

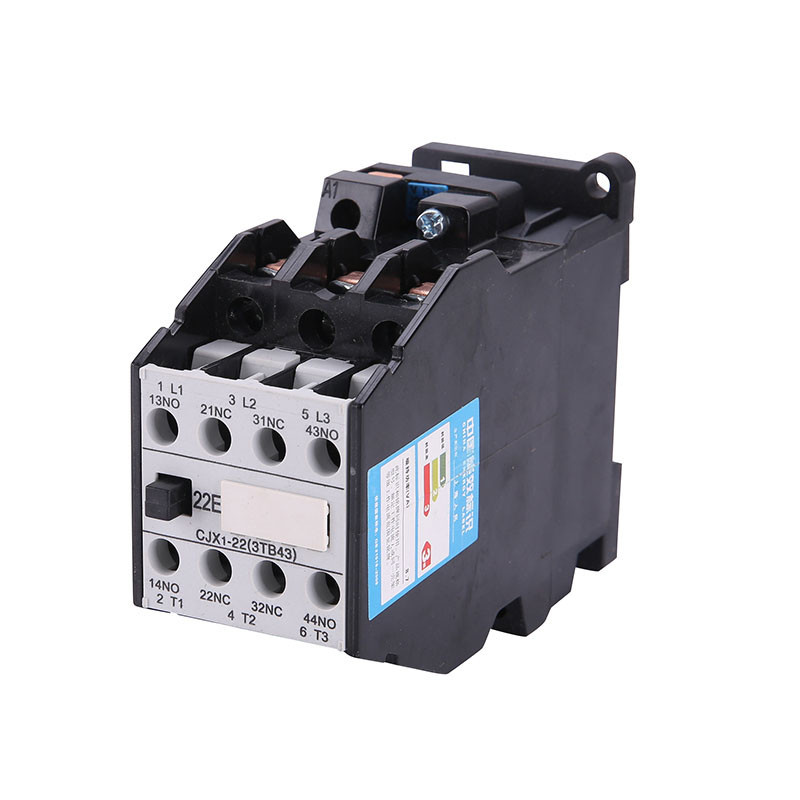

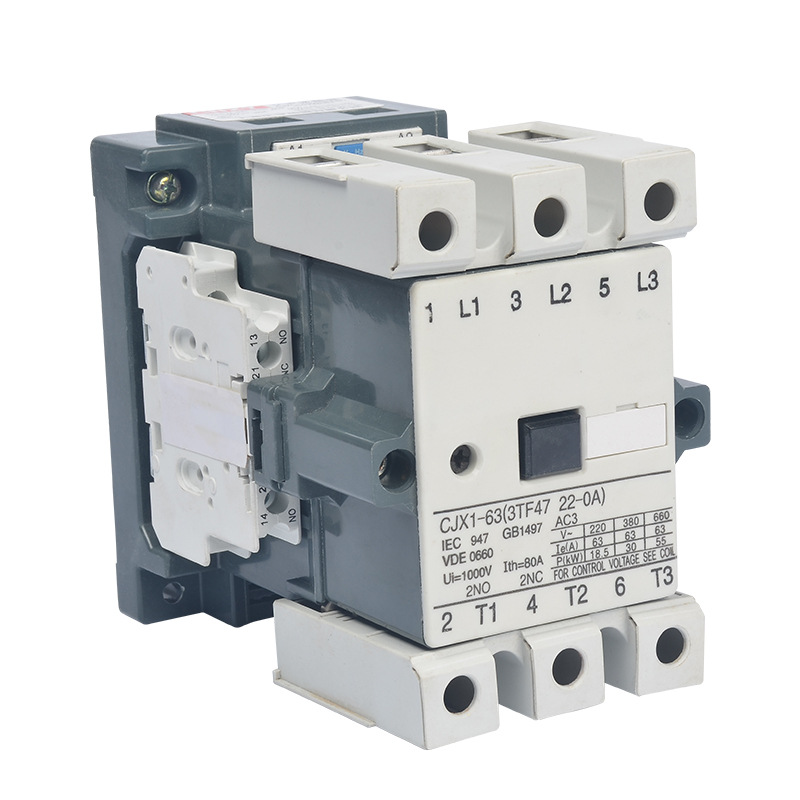

CJX1 series AC contactors (hereinafter referred to as contactors) are mainly used for AC 50 (or 60)Hz, with rated working voltage up to 660V V. Under the category of AC-3, the rated working voltage is 380V, and the rated working current is up to 400A, which can be used to connect and disconnect the circuit at a distance, and can be combined with JRS2(3UA5) thermal relay to form an electromagnetic starter to protect the circuit that may be overloaded.

Normal working conditions and installation conditions

The altitude does not exceed 2000 m;

The ambient air temperature is -5℃~+40℃, and the average value within 24 hours does not exceed+35℃;

When the high temperature is +40℃, the relative humidity of air does not exceed 50%; Higher relative humidity is allowed at lower temperature, for example, not more than 90% at +20℃, and special measures should be taken for occasional condensation due to temperature change.

Pollution level: level 3;

Installation category: the installation category is III;

Installation conditions: the inclination between the installation surface and the vertical plane is not more than 5;

Installed in a place where there is no obvious shaking and impact vibration.

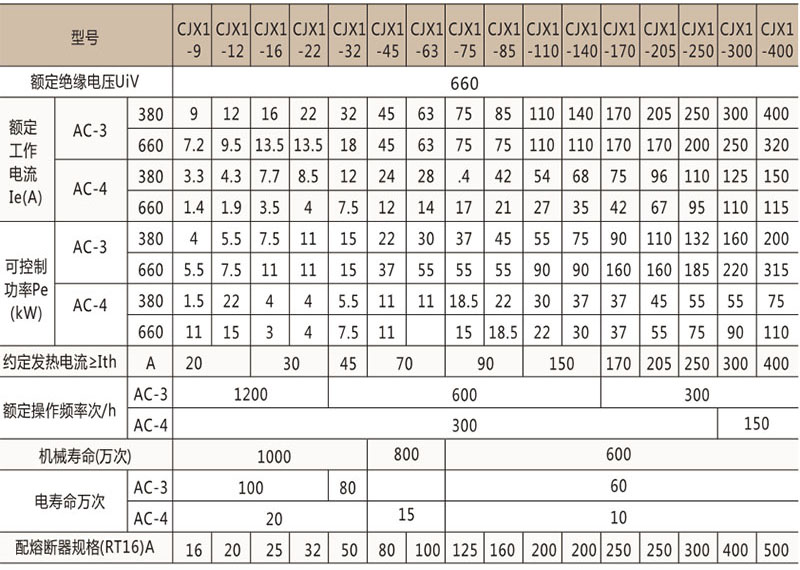

Technical parameter

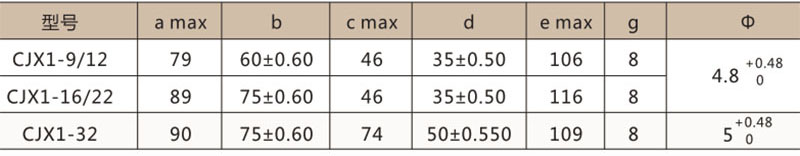

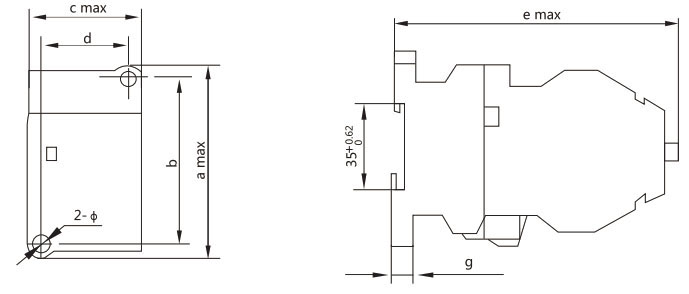

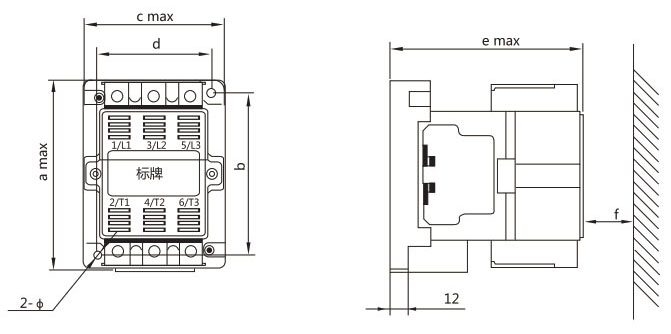

Appearance and installation dimensions of CJX1-9~32

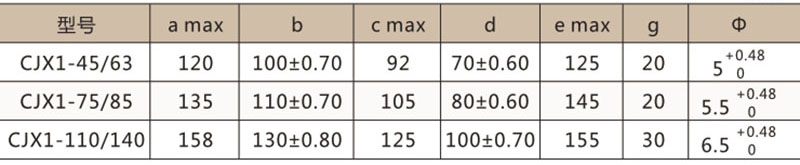

Appearance and installation dimensions of CJX1-45~140

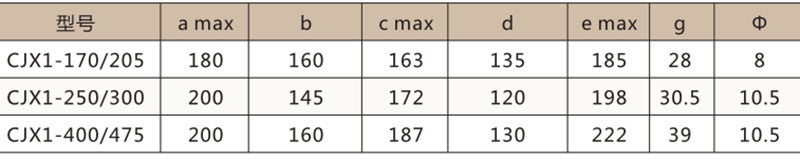

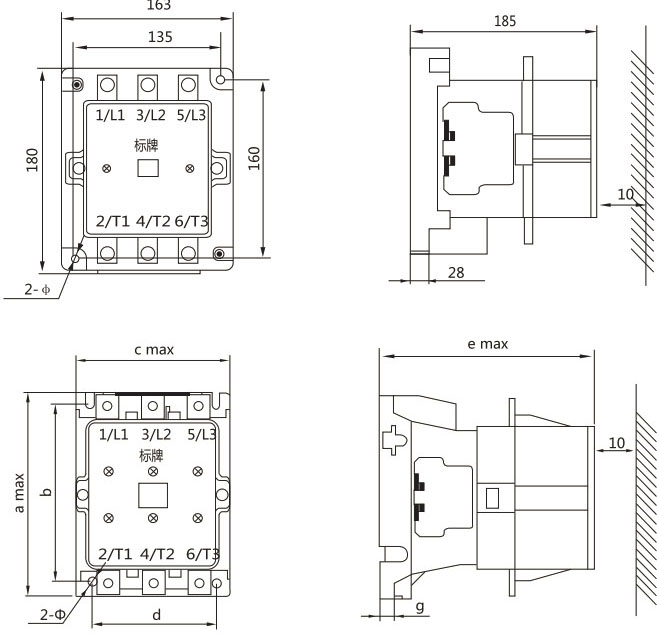

Appearance and installation dimensions of CJX1-170~475
