Product Details

Product introduction

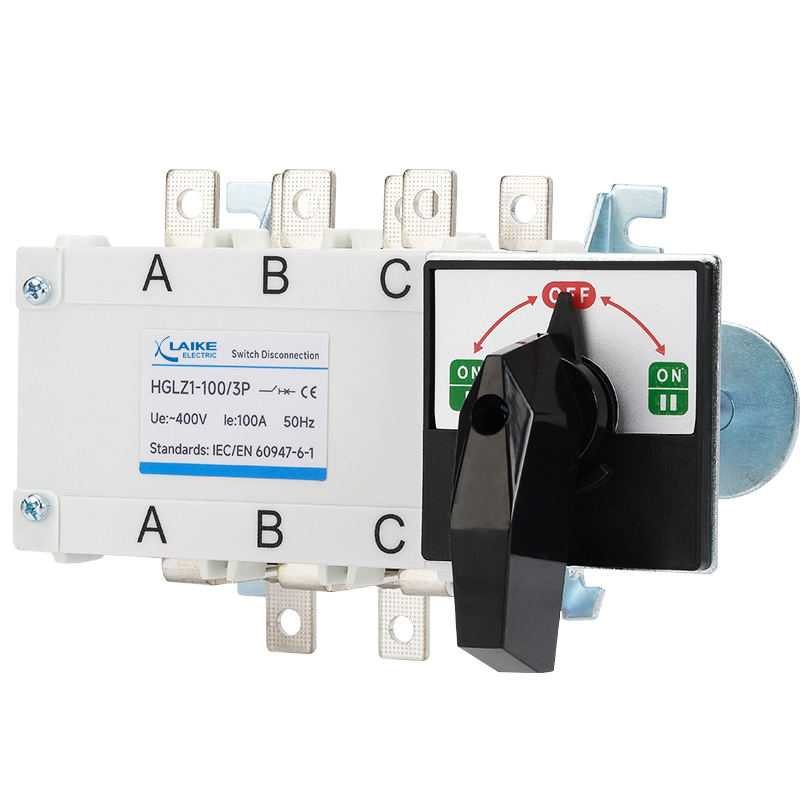

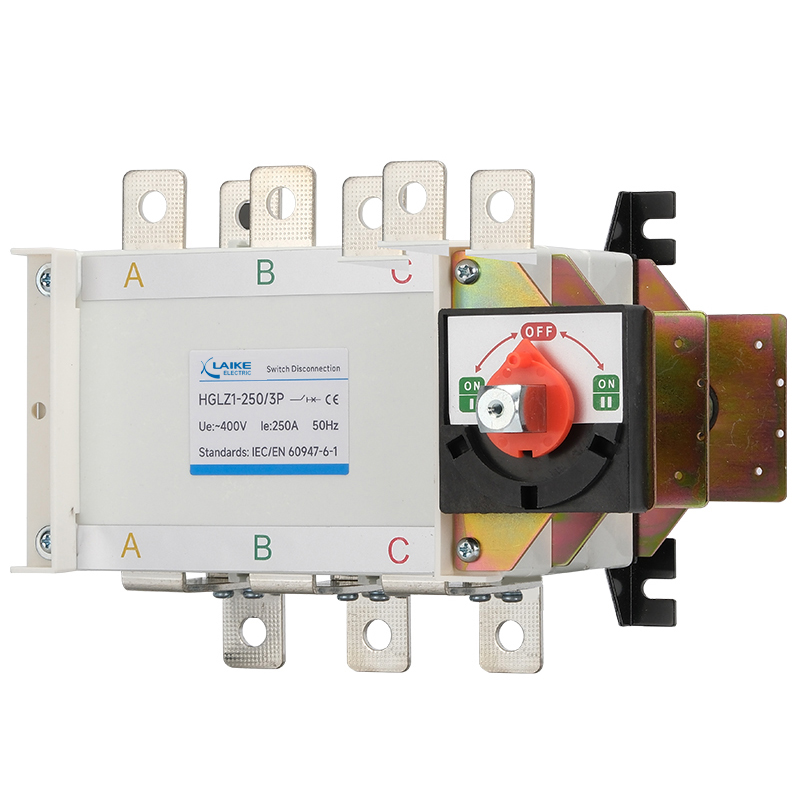

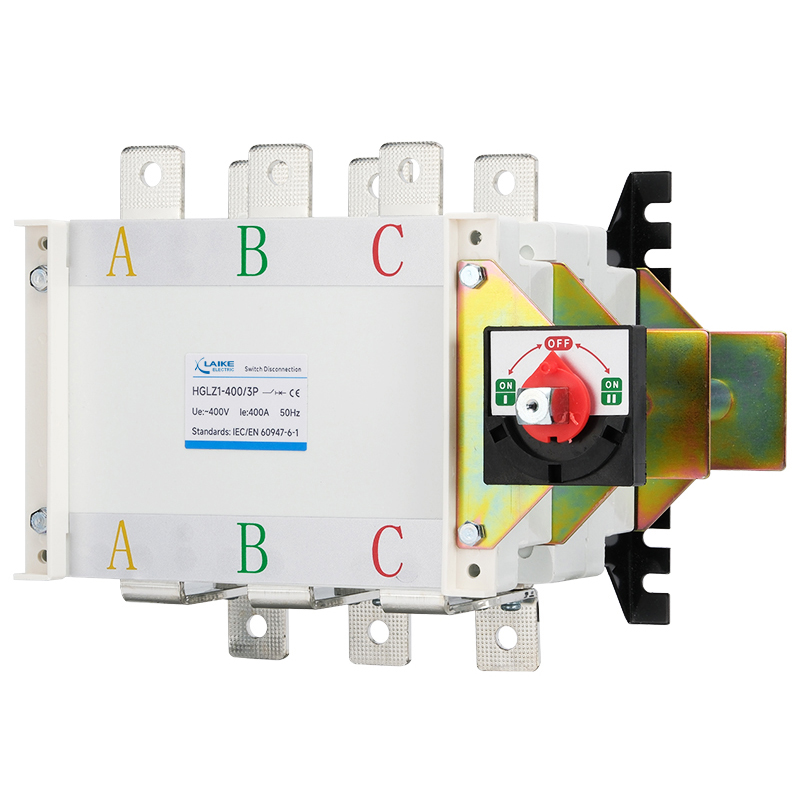

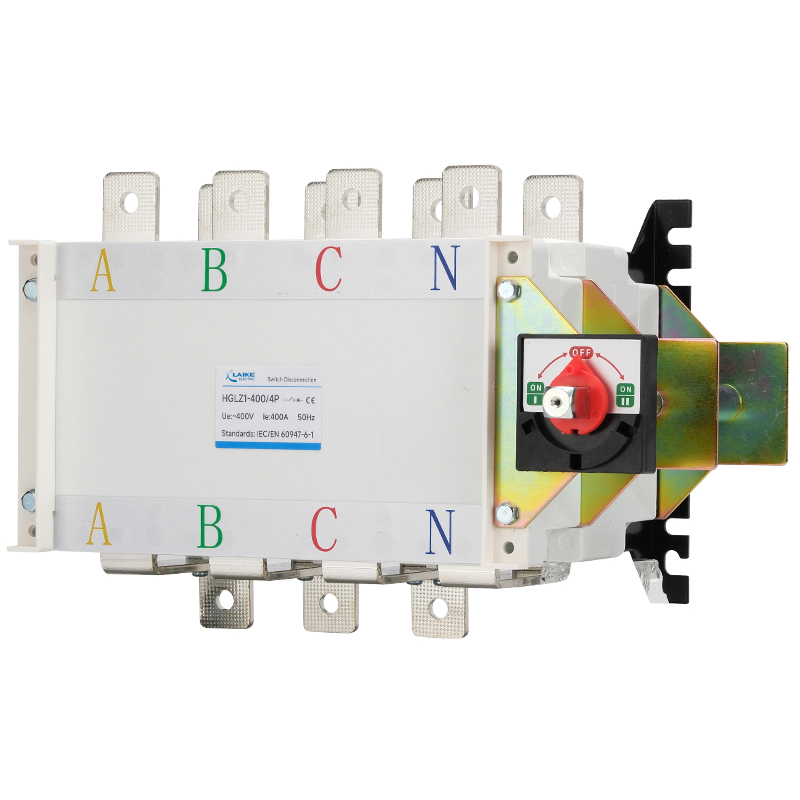

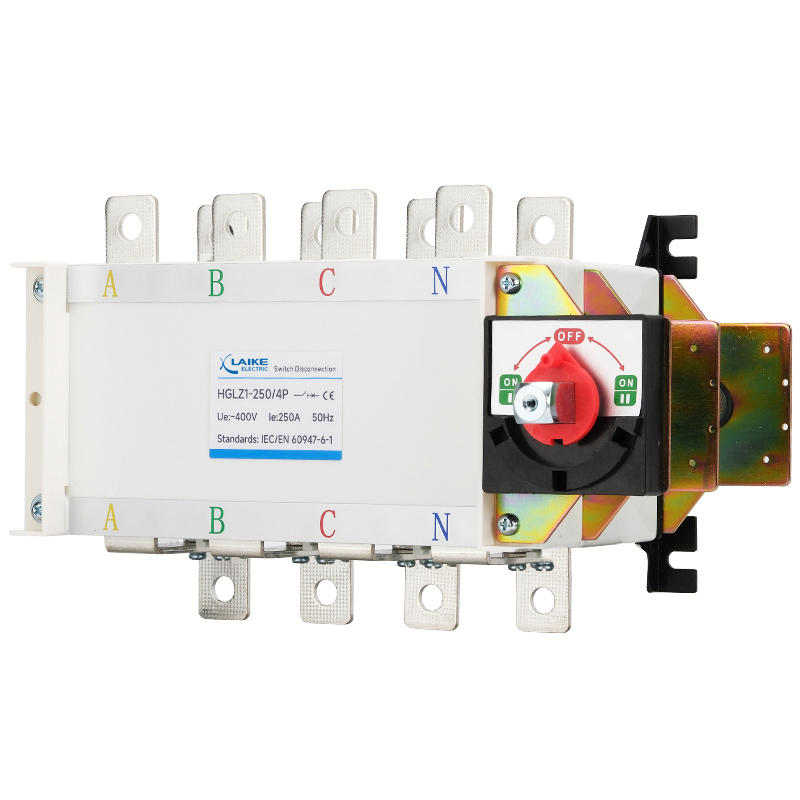

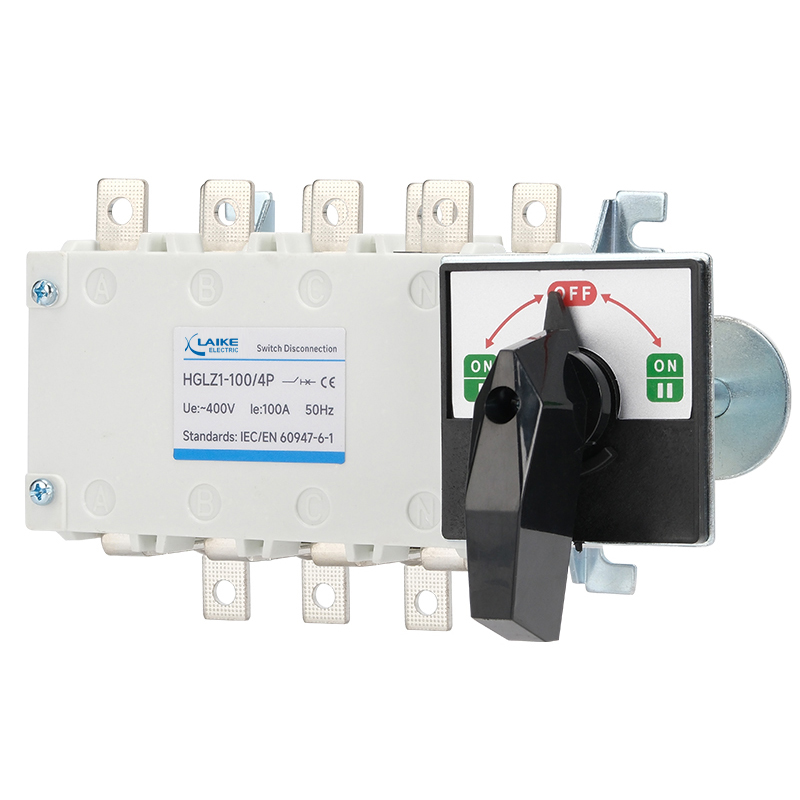

HGLZ1 series load isolation switches (hereinafter referred to as switches)are suitable forAC 50Hz,rated voltage 660V,and rated current up to 3200A.They are used for infrequentconnection and disconnection of circuits and electrical isolaion.This product adopts a mod-ular design structure and has flexible and diverse combinations.Switches are widely usedin distribution systems and automation systems in construction,power,petroleum,chemical,and other industries.

Standard:IEC60947-3

Features

(DMC)for the switch housing,which has high dielectric performance,protection capa-bility,and reliable operating safety.The operating mechanism is a spring-stored energy,instantaneous release acceleration mechanism,with instant connection and disconnectiondual-breakpoint contact structure.It is independent of the speed of the operating handle,greatly improving the electrical and mechanical performance.

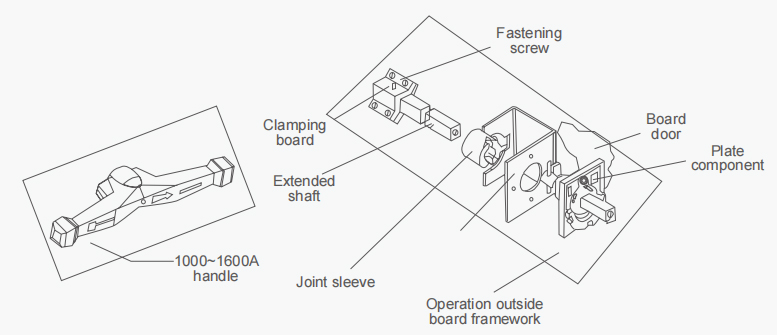

The side-operated isolation switch adds a side-operated mechanism on the basis of thecentral front-operated isolation switch,which is suitable for the connection and disconnec-tion circuit and electrical isolation on the side.

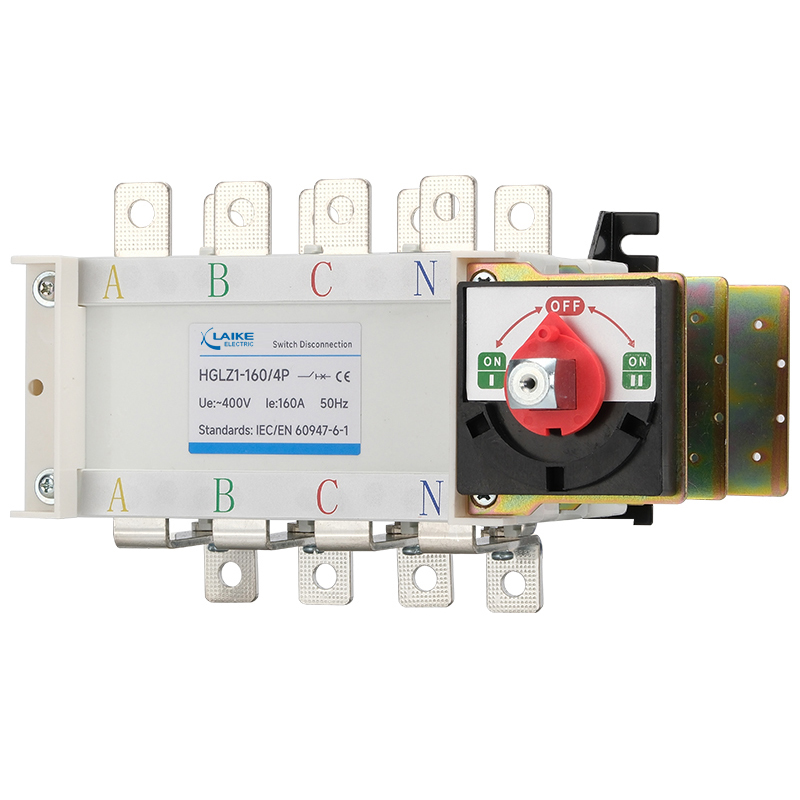

The double-throw isolation switch is composed of two isolation switches stacked up anddown or arranged side by side,which is suitable for the switching of dual power supply ortwo load devices,as well as for safety isolation.

The switch has a beautiful and novel appearance,simple structure,and easy operation.

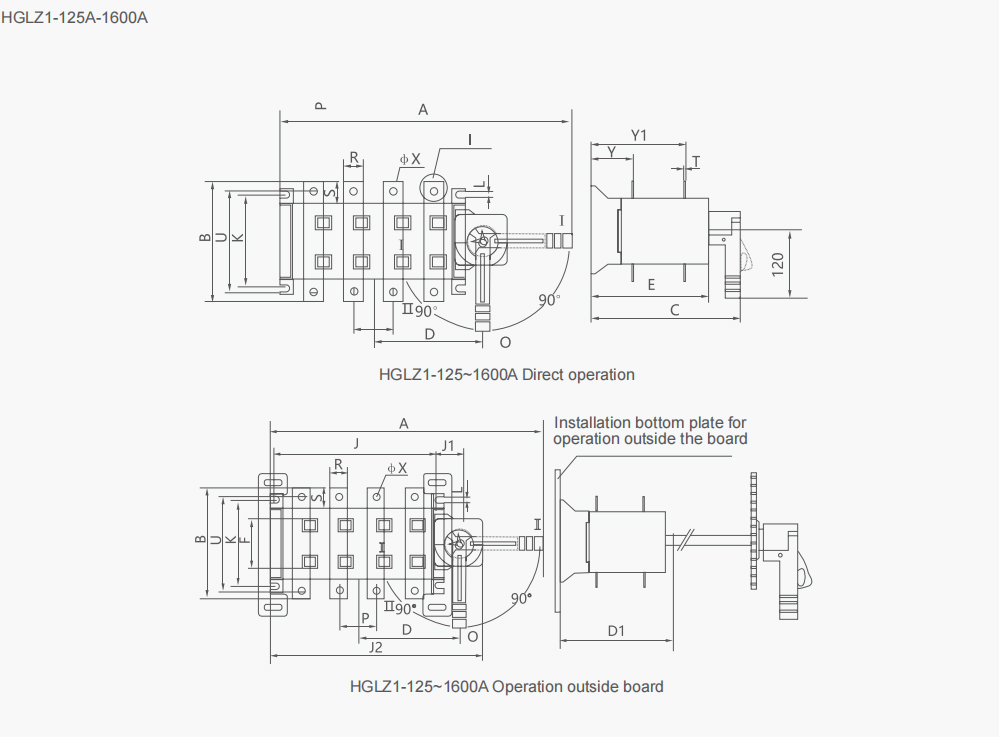

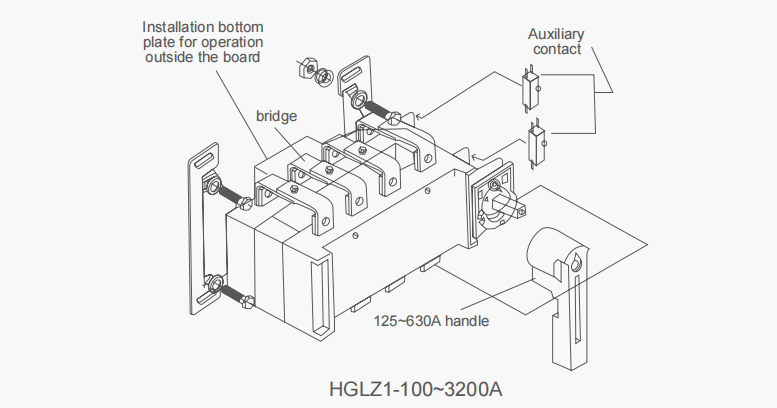

Outline dimension

Technical data

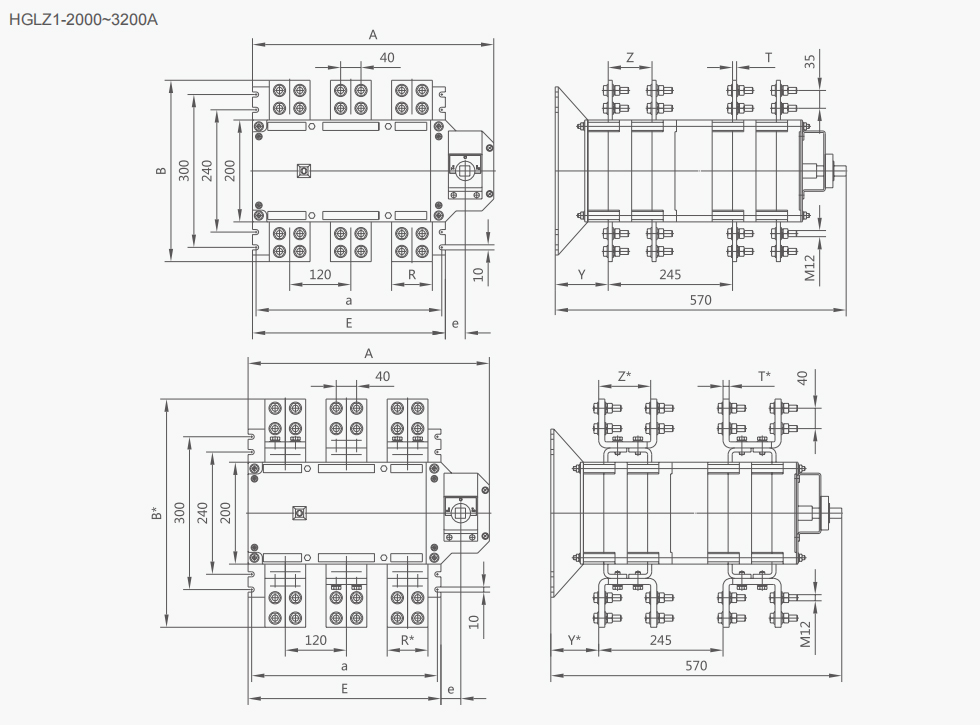

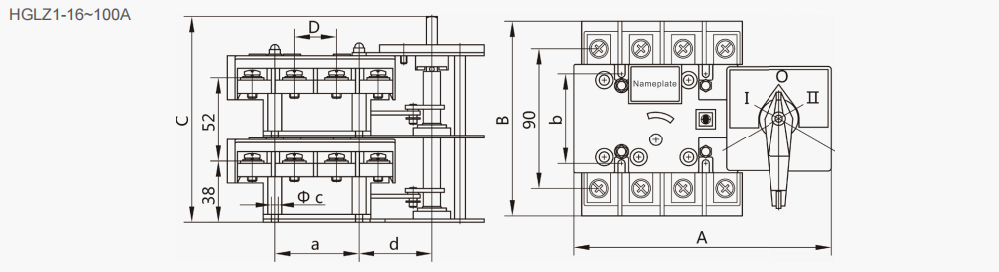

Overall and mounting dimensions(mm)
