Product Details

Product Overview:

LKJX Series fire-fighting machinery emergency starting device can be manually operated to forcibly start the fire pump when the power distribution cabinet can't automatically start the fire pump, so that the fire pump can operate effectively, thus avoiding causing great property losses to the people. Products can be divided into 3P and 6P according to the series, which are suitable for one-way and two-way fire fighting and emergency start.

Product Model: LKJX Series

Rated current: 100 A-3200 A (specially customized above 800 A).

Starting mode: three in and three out, three in and six out (three-phase squirrel-cage motor direct start or star triangle start);

Technical requirements: working voltage: AC220V/AC380V.

Series: 3P/6P

Auxiliary power supply: AC/DC

Performance Characteristics:

Double-row compound contact/transverse pull mechanism/pre-energy storage technology is adopted to basically realize zero arcing;

Reliable mechanical chain transmission is adopted, and independent load isolating switch is used for the executive components, which is safe and reliable to use;

Pre-energy storage technology is adopted, the switching is stable and reliable, and the opening and closing noise and impact force are effectively controlled;

It has obvious on-off indication, padlock and other functions, and reliably realizes the mechanical emergency start function;

Use Environment:

The ambient air temperature is between-5 C and+40 C, and the 24-hour average does not exceed+35 C;

Altitude: no more than 2000m;

Relative humidity: it shall not exceed 50% at+40 C, the average minimum temperature in the wettest month shall not exceed+25 C, and the average maximum relative humidity in this month shall not exceed 90%, and condensation on the product surface due to temperature change shall be considered.

Pollution level: level 3;

Precautions:

Please do not install it in an environment containing explosive gas, otherwise it may cause explosion;

Please do not install it in a particularly humid place;

Please don't install it where the external magnetic field is more than 5 times of the geomagnetic field, otherwise the circuit breaker will not work normally;

Please do not install it where the vibration is greater than 5g;

Please do not install in the place where gas medium can corrode metal and destroy insulation.

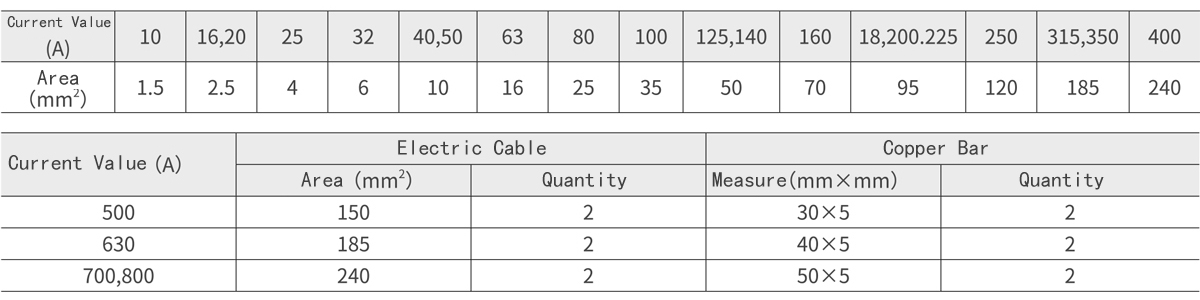

Technical Parameter

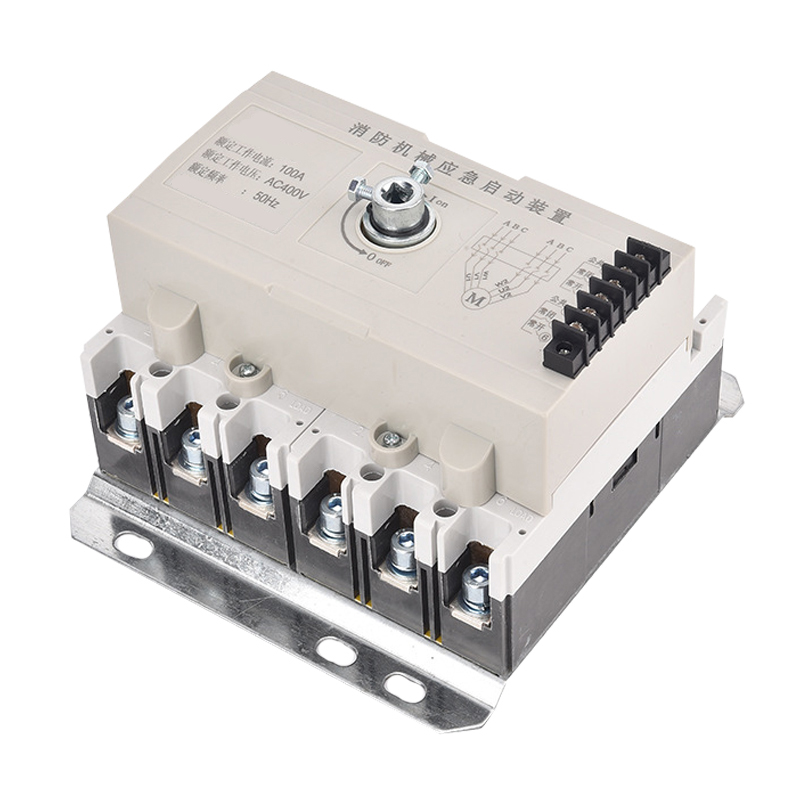

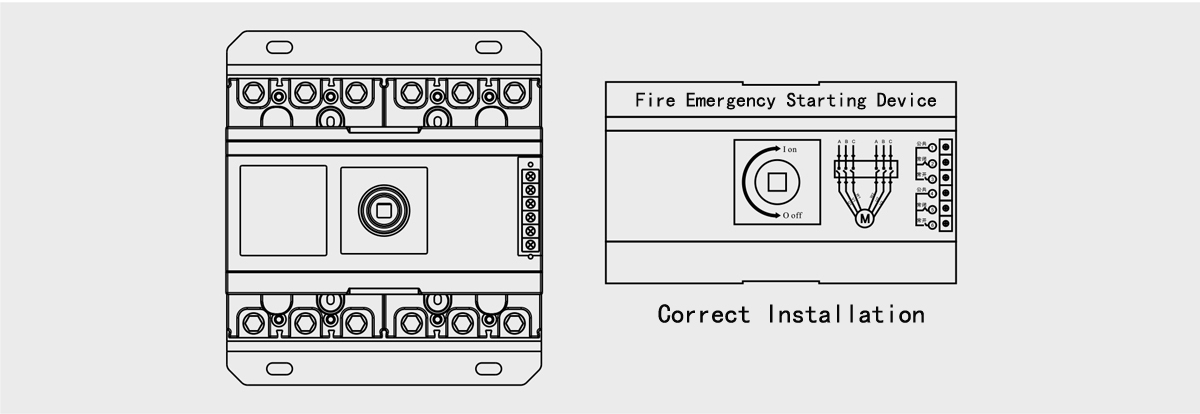

Product Appearance

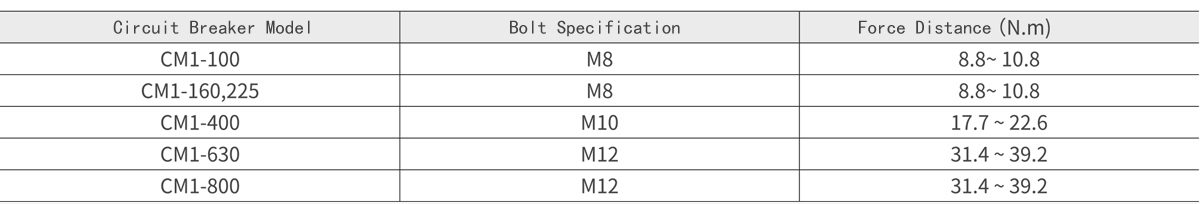

Applicable Circuit Breaker Model
